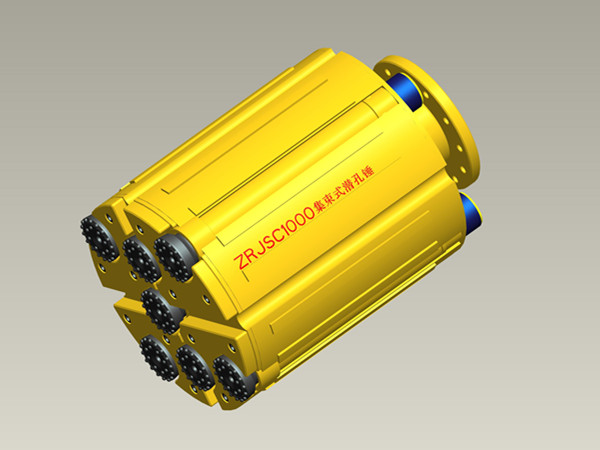

ZRJSC1000 cluster type down-the-hole hammer technical parameters
Specifications and models
ZRJSC1000
Working size (mm)
1000
Height of hammer body (mm)
1400
Total height (mm)
2600
Hammer weight (kg)
1900
Total weight (kg)
3000
Number of hammers
7
Power consumption parameters
Wind pressure
1.0Mpa
1.8Mpa
2.4Mpa
Air consumption
63m3/min
126 m3/min
182 m3/min
Note: The actual parameters are slightly different due to product improvements, the above parameters are for reference only!
